Single Mode Manual VOA (1064,1310,1550,1310/1550)


Features:

  • Low insertion loss &High precision
  • Optical path epoxy free
  • Low PDL & PMD
  • Telcordia qualified
  • RoHS compliant

Specifications :

  Wavelength
1310±40nm, 1550±40nm, 1310/1550±40nm or 1064±20nm
  Insertion Loss
0. 3dB Typ, 0.6dB Max for 1310nm, 1550nm or 1064nm
  Insertion Loss
0.4 dB Typ, 0.8dB Max for 1310/1550nm
  Max Attenuation
60dB
  Return Loss
>50dB
  Polarization Dependent Loss
<0.15dB
  Maximum Power Handling
500mw
  Operating Temperature
  -5 ~ 70 ºC
  Storage Temperature
  -40 ~ 85 ºC
  Dimensions
  Ø26 × 16 X 8mm
  Fiber
 SMF-28 for 1310nm or 1550nm, HI1060 for 1060nm

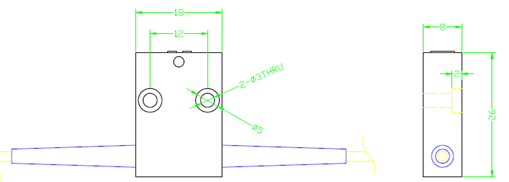

Dimensions (Unit: mm):



Single mode SMF-28 fiber, 1550nm Manual VOA in stock, FVOA-150111221 ($150.0): :





900um loose tube, Corning SMF-28 fiber, no connector. Contact us for quantity pricing.
