CATV Modulator

Product Description:

The dual output analog community antenna television (CATV) modulator is based on a Mach-Zehnder waveguide interferometer using the annealed proton exchanged in X-cut, Y-propagating LiNbO3 substrates. Two optical outputs offer flat frequency response and excellent composite second order distortion (CSO) performance.

Key Features:

  • APE Waveguide
  • Low Insertion Loss
  • Low Drive Voltage
  • Low Electrical Return Loss(S11)
  • Flat Frequency Response
  • Separate Bias Electrode
  • Dual Optical Output Ports
  • Enables Low CSO on Both Outputs
  • Integrated Phase Modulator

Applications:

  • High Performance External Intensity Modulation for 1550 nm CATV Band Transmitters

Specifications :

  Parameters Specifications
  Optical Operating Wavelength
nm
1550 ± 10
  On/Off Extinction Ratio
dB
≥ 23
  Insertion Loss
dB
≤ 4.5
  Optical Return Loss
dB
≥ 45
  Insertion Loss Imbalance Between Outputs
dB
≤ 0.5
  Input Optical Power
mW
≤ 200
  Intensity Modulator Single Electrode Vπ (@100MHz)
V
  ≤ 6
  Applied RF Power
dBm
≤ 24
  Bias Electrode Vπ (@ DC)
V
≤ 5.0
  Bias Applied DC Voltage
V
≤ ±15.0
  Operating Bandwidth
MHz
47 ~ 860
  Amplitude Flatness
dB
≤ ±0.5
  Phase Flatness
°
≤ ±5
  Electronic Reflect (S11)
dB
≤ -18
  Phase Modulator
Half Wave Voltage (@DC)
V
8.5
  3dB Operating Bandwidth
GHz
≥ 2.5
  Electronic Reflect (S11)
dB
≤ -10
  Applied RF Power
dBm
  50
  Input Impedance (By Design)
Ω
< 30
  Fiber and Connector
Input Fiber
Fujikura SM15-P-8/125-UV/UV400, 0.9mm Loose tube
  Output Fiber
SMF-28, 0.9mm Loose Tube
  Electrical Connector
SMA
  Environmental
Operating Temperature
°C
0 ~ +70
  Storage Temperature
°C
-40 ~ +80

1550nm CATV Modulator in stock. 900um loose tube protection, no connector, FMOD-150201121 ($2050.0)





Contact us for quantity pricing.

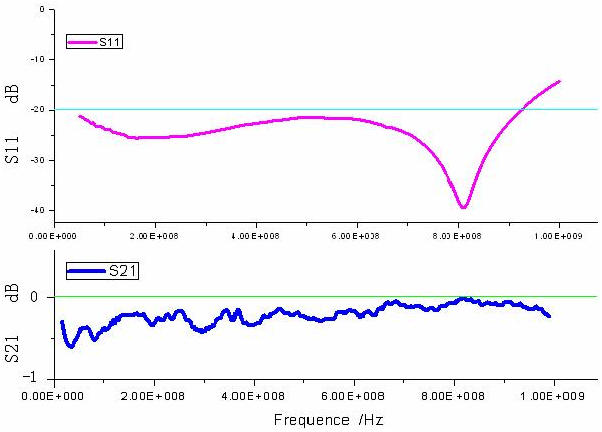

Typical Return Loss &Frequency Response Curve(S11& S21):

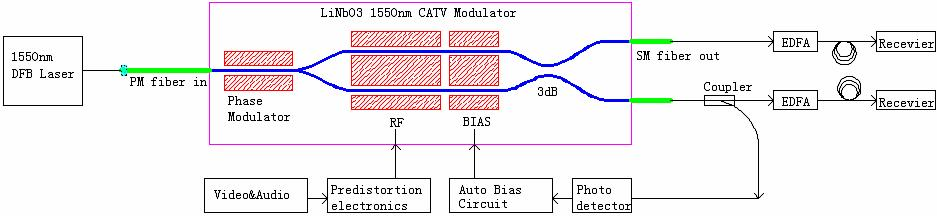

Typical Applications In CATV Transmission System:

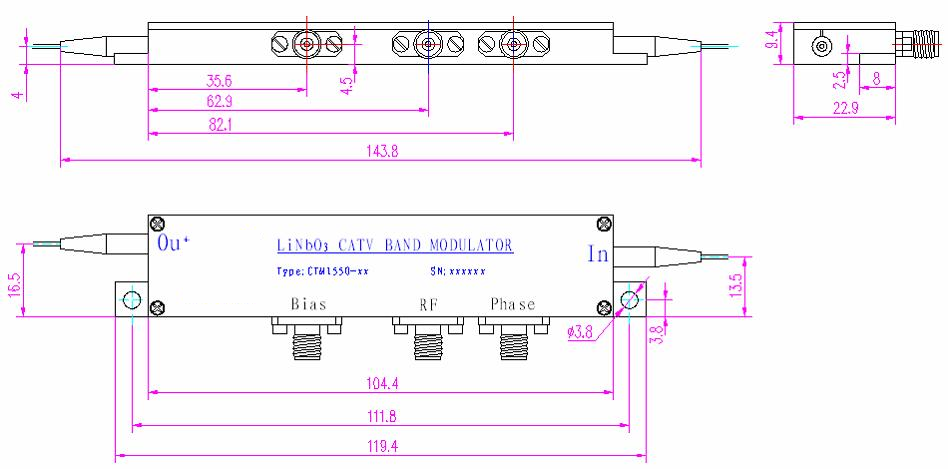

Dimensions (Unit: mm):
