In addition to the fiber spectrometers designed for UV, visible, NIR, or broadband spectral ranges, we welcome any challenges and needs for customized applications
Part Number
|
Wavelength
(nm) |
Detector
|
Slit
(μm) |
Spectral Resolution
|
|
GLA600-UVN
UV
|
190-400
190-480
|
Toshiba TCD1304DG
|
10, 25,
50, 100
|
FWHM 0.3nm@Hg 253nm @25μm slit
FWHM 0.47nm@Hg 253nm @25μm slit
|
|
GLA600-UVN
UV/VIS
|
190-750
|
Toshiba TCD1304DG
|
10, 25,
50, 100
|
FWHM 0.96nm@Hg 253nm@25μm slit
|
|
GLA600-UVN
VIS
|
350-1000
|
Toshiba TCD1304DG
|
10, 25,
50, 100
|
FWHM 0.76nm@576nm@25μm slit
|
|
GLA600-UVN
NIR
|
750-960
|
Toshiba TCD1304DG
|
10, 25,
50, 100
|
FWHM 0.83nm@785nm@25μm slit
|
|

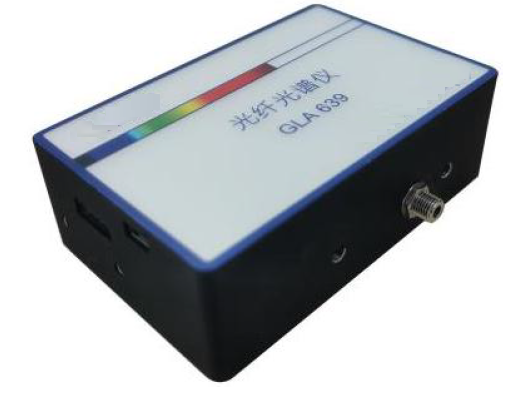

GLA639
UV
|
190-380
190-480
|
High end detector
|
10, 25,
50, 100
|
FWHM 0.27nm@Hg 253nm @25μm slit
FWHM 0.4nm@Hg 253nm @25μm slit
|
|
GLA639
UV/VIS
|
190-800
|
High end detector
|
10, 25,
50, 100
|
FWHM 0.94nm@Hg 576nm@25μm slit
|
|
GLA639
VIS
|
350-1000
|
High end detector
|
10, 25,
50, 100
|
FWHM 1.1nm@576nm@25μm slit
|
|
GLA639
NIR
|
750-960
|
High end detector
|
10, 25,
50, 100
|
FWHM 0.5nm@912nm@25μm slit
|
|
Broadband

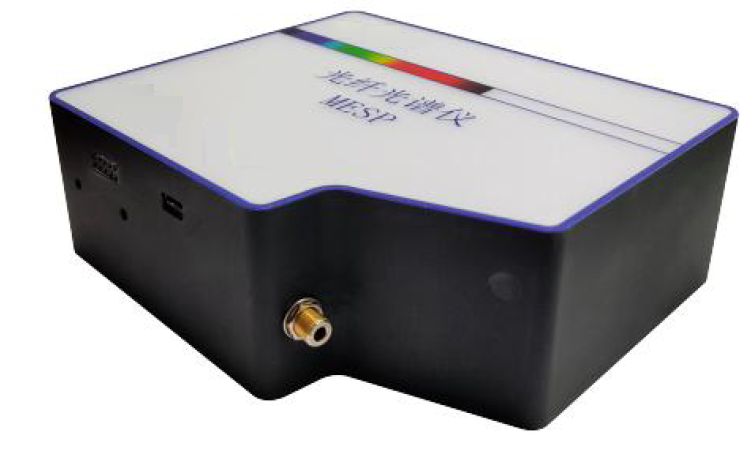

MESP
|
190-1100
|
High end detector
|
10, 25,
50, 100
|
FWHM 1.3nm@Hg 546nm@25μm slit
|
|
Mini

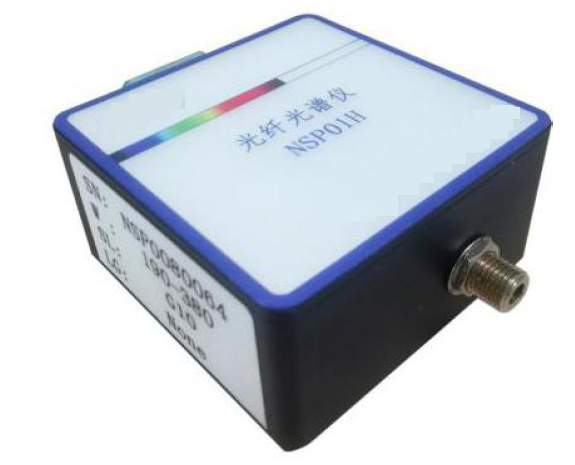

NSP01H
|
190-380
|
High end detector
|
10, 25,
50, 100
|
FWHM 0.6nm@Hg253nm@10μm slit
|
|
Mini

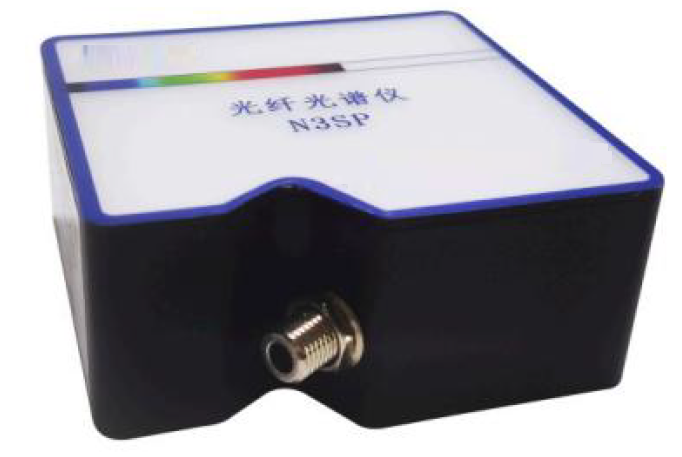

N3SP
|
190-840
|
High end detector
|
10, 25,
50, 100
|
FWHM 1.6nm@Hg 253nm@10μm slit
|
|
|
