InGaAs PIN Photodiodes (DPIN-322)

InGaAs PIN Photodiodes, TO-46, Lens Cap, Active Area 75um in Stock, DPIN-322 ($28.0):





The photodiode has superior noise and photoelectric performance, a wide bandwidth up to 2GHz. Contact us for quantity pricing.



Electrical and Optical Characteristics (T=25ºC):

Parameters
Symbol
Test conditions
Min
Typ Max
Unit
Spectral Response Range
λ
  1000
  1650
nm
Dark Current
ID
VR = 5V
  0.2
0.5
nA
Responsivity
Re
VR = 5V, λ = 1310nm
0.85
0.90
  A/W
VR = 5V, λ = 1550nm 0.90
0.95
  A/W
Active Area
    Φ75
um
Capacitance
C
f = 1MHz, VR = 5V   0.63
0.75
pF
Operating Voltage
Vopr
    -5
-15
V
Cut-off Frequency
fc
VR = 5V, RL = 50Ω, -3dB
2.5
    GHz



Absolute Maximum Ratings (T=25ºC):

  Parameters
Min
Typ Max
Unit
  Reverse Voltage
    25
V
  Input Optical Power
    10
dBm
  Operating Temperature
-40
  85
°C
  Storage Temperature
-40
  85
°C
  Lead Solder Temperature
    260
°C
  Soldering Duration
    10
s

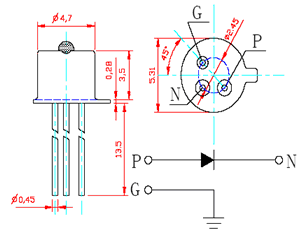

Package Dimensions:



Spectral Response, Responsivity vs. Temperature :

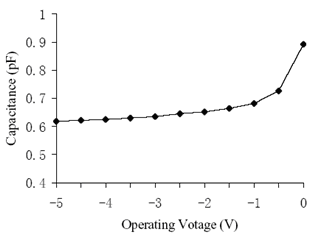

Dark Current vs. Temperature, Capacitance vs. Operating Voltage:
