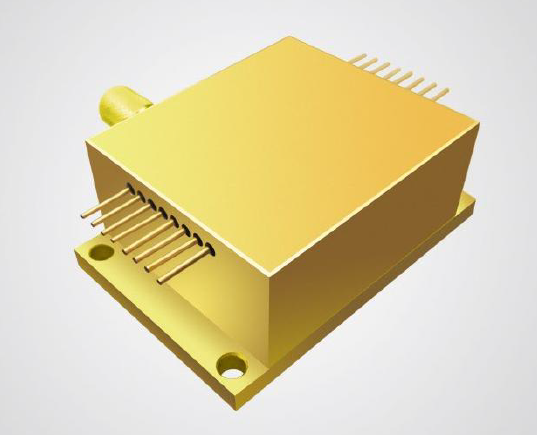

1064nm Detachable Laser Diode

Product Features:

  • 10W or 20W output power
  • 200μm fiber core diameter
  • 0.22 N.A.
  • Optional functions: red aiming beam, thermistor, power PD, and fiber detector
  • For therapeutic or dental applications

Electrical and Optical Characteristics (T=25ºC):

Parameters
Symbol
Test conditions
Min
Typ Max
Unit
CW Output Power 10W
Po
CW 10   W
CW Output Power 20W
Po
CW 20   W
Threshold Current
Ith
CW   0.7   A
Operating current
Iop
CW 10W or 20W
  9
A
Operating Voltage for 10W
Vop
CW 10W
  3.5
V
Operating Voltage for 20W
Vop
CW 20W
  7
V
Reverse Voltage for 10W
Vre
CW 10W
5   V
Reverse Voltage for 20W
Vre
CW 20W
10   V
Slope Efficiency for 10W
η
CW 10W
1.4   W/A
Slope Efficiency for 20W
η
CW 20W
2.8   W/A
Electrical-to-Optical Efficiency
PE
CW 10W or 20W
30   %
Central Wavelength
ʎc
CW 10W or 20W
1044 1064 1084
nm
Spectral width(FWHM)
Δʎ
CW 10W or 20W
6   nm
Wavelength Shift with Temperature
  CW 10W or 20W
0.3   nm/℃
Fiber Core Diameter
Dcore
  200   μm
Fiber Numeric Aperture
NA
0.22
ESD
ESD
  500
V
Storage temperature
    -20 70

Lead Soldering Temp
    260

Lead Soldering Time
    10
Sec
Operating Case Temperature
    15 35

Relative Humidity
    15 75
%

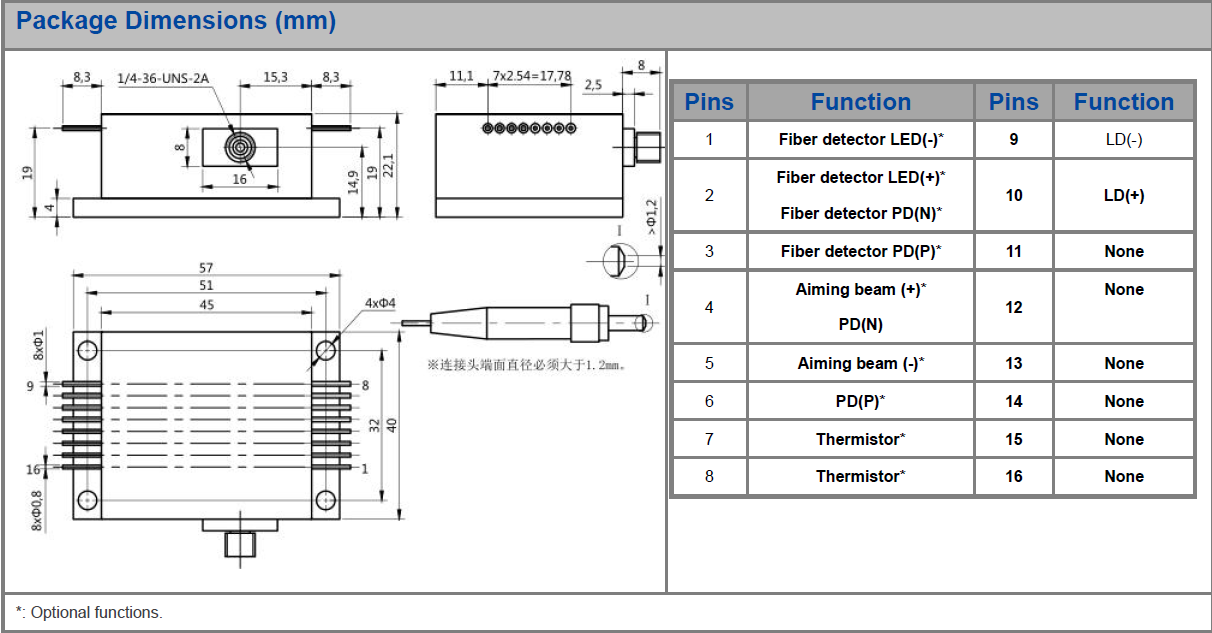

Pin Definition and Dimensions in mm :
