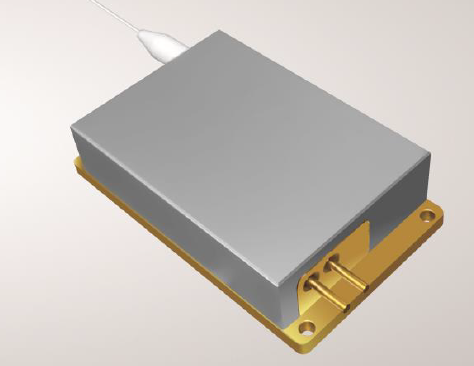

878.6nm Wavelength-Stabilized Fiber Coupled Laser Diodes

Product Features:

  • 878.6nm Wavelength-Stabilized
  • 65W output power, high power is available on request
  • 200μm fiber core diameter
  • 0.22 N.A.
  • For pumping

Electrical and Optical Characteristics (T=25ºC):

Parameters
Symbol
Test conditions
Min
Typ Max
Unit
CW Output Power
Po
CW 65   W
Threshold Current
Ith
CW   1.2   A
Operating current
Iop
CW 65W
9 10
A
Operating Voltage
Vop
CW 65W
17 19
V
Slope Efficiency
η
CW 65W
7   W/A
Electrical-to-Optical Efficiency
PE
CW 65W
43   %
Central Wavelength
ʎc
CW 65W
877.6 878.6 879.6
nm
Spectral width(FWHM)
Δʎ
CW 65W
0.5   nm
Wavelength Shift with Temperature
  CW 65W
0.03   nm/℃
Back reflection wavelength Range
ʎ CW 65W
1040 1200 nm
Back reflection isolation
ʎ CW 65W
30 dB
Fiber Core Diameter
Dcore
  200   μm
Fiber Numeric Aperture
NA
0.22
ESD
ESD
  500
V
Storage temperature
    -20 70

Lead Soldering Temp
    260

Lead Soldering Time
    10
Sec
Operating Case Temperature
    15 35

Relative Humidity
    15 75
%

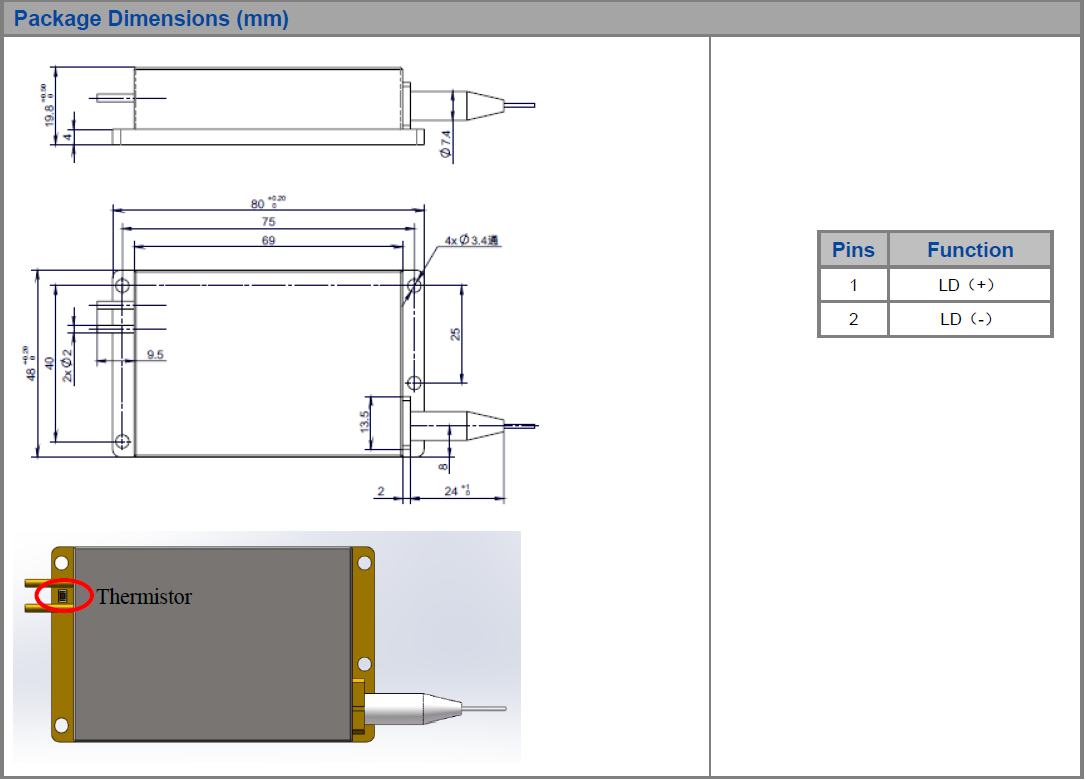

Pin Definition and Dimensions in mm :
