IR narrow bandpass filters

Specifications  for PIRF-INBP10600 Type 1:

  Material Silicon
  Thickness Tolerance  ± 0.05mm
  Length, Width or Diameter Tolerance  ± 0.15mm
  Central Wavelength (CWL)
10600 ± 100nm
  Half Power Bandwidth (HPB)
120 ± 20nm
  Tpeak (Tp)
60%
  Out of Band Blocking
400 ~  13600nm
  Tavg
< 1%
  Surface Quality
80/50

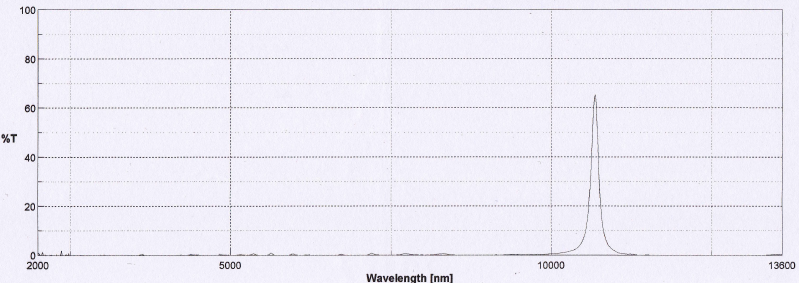

  Transmission Curve
See Figure Below



Narrow Bandpass Filter, CWL:10600nm, diameter: 25.3mm, thickness: 0.5mm in stock, PIRF-INBP10600-01101 ($668.0):





Contact us for quantity pricing.



Specifications  for PIRF-INBP10600 Type 2:

  Material Germanium
  Thickness Tolerance  ± 0.05mm
  Length, Width or Diameter Tolerance  ± 0.15mm
  Central Wavelength (CWL)
10600 ± 100nm
  Half Power Bandwidth (HPB)
190 ± 20nm
  Tpeak (Tp)
90%
  Out of Band Blocking
400 ~  13600nm
  Tavg
< 1%
  Surface Quality
80/50

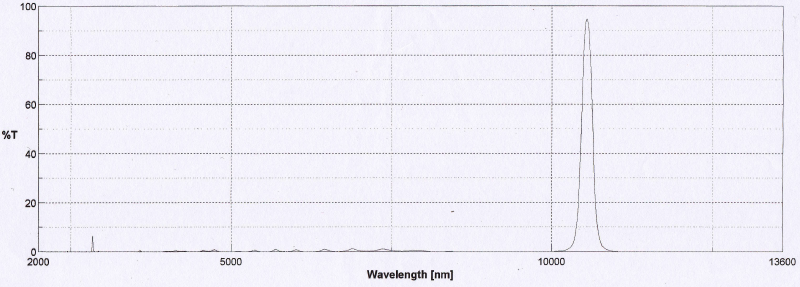

  Transmission Curve
See Figure Below



Narrow Bandpass Filter, CWL:10600nm, diameter: 18.0mm, thickness: 0.7mm in stock, PIRF-INBP10600-01201 ($850.0):





Contact us for quantity pricing.



See other IR filters
