IR long pass filters

Specifications  for PIRF-ILP5500 Type :

  Material Silicon
  Thickness Tolerance  ± 0.05mm
  Length, Width or Diameter Tolerance  ± 0.15mm
  5% Cut on
5500 ± 400nm
  Transmission Wavelength Range(TWR)
6500 ~ 13500nm
  Tavg
70%
  Out of Band Blocking
1500 ~  5000nm
  Surface Quality
80/50

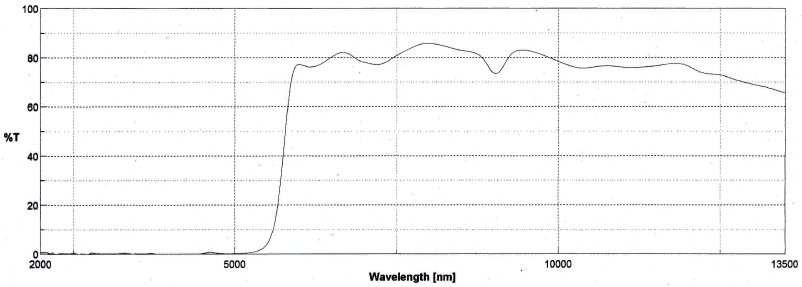

  Transmission Curve
See Figure Below



Long pass Filter, 5% cut on 5500nm, size: 2.95X2.95mm, thickness: 0.5mm in stock, PIRF-ILP5500-01101 ($56.0):





Contact us for quantity pricing.



Long pass Filter, 5% cut on 5500nm, size: 5.0X5.0mm, thickness: 0.5mm in stock, PIRF-ILP5500-01102 ($68.0):





Contact us for quantity pricing.



Long pass Filter, 5% cut on 5500nm, size: 10.0X10.0mm, thickness: 0.5mm in stock, PIRF-ILP5500-01103 ($110.0):





Contact us for quantity pricing.



Long pass Filter, 5% cut on 5500nm, diameter: 25.0mm, thickness: 0.5mm in stock, PIRF-ILP5500-01104 ($160.0):





Contact us for quantity pricing.



See other IR filters
