IR long pass filters

Specifications  for PIRF-ILP7300 Type :

  Material Germanium
  Thickness Tolerance  ± 0.05mm
  Length, Width or Diameter Tolerance  ± 0.15mm
  5% Cut on
7420 ± 70nm
  Transmission Wavelength Range(TWR)
8100 ~ 11000nm
  Tavg
90%
  Out of Band Blocking
1500 ~  7200nm
  Surface Quality
80/50

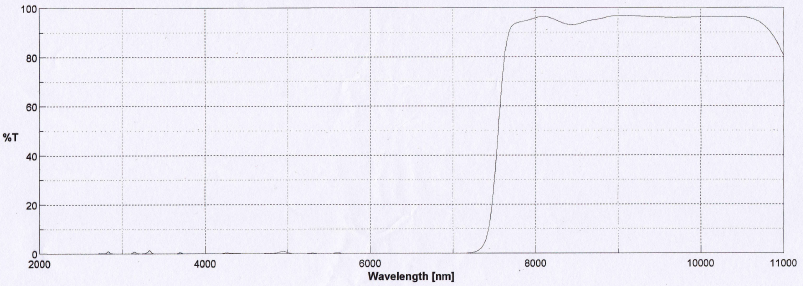

  Transmission Curve
See Figure Below



Long pass Filter, 5% cut on 7420nm, diameter: 18.0mm, thickness: 1.0mm in stock, PIRF-ILP7300-01201($405.0):





Contact us for quantity pricing.
