Polarization Maintaining (PM) Fiber  Arrays

Product Description:

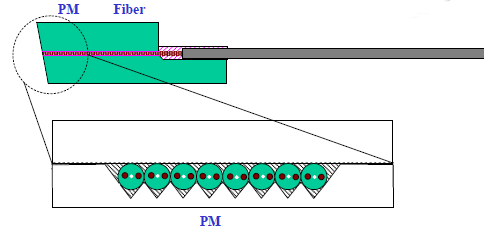

Precision Micro-optics offers high quality PM fiber arrays consisting of multiple PM fibers whose polarization axes are aligned to each other and the plane is formed by the center of the fibers. They are made of quartz, pyrex or silicon material with flat or angular polished end face. These products feature high pitch accuracy, high reliability and low cost. We also provide customized designs for your specific applications.



Applications:

  • PM photonic waveguide devices
  • Planar splitters
  • Integrated fiber optic components

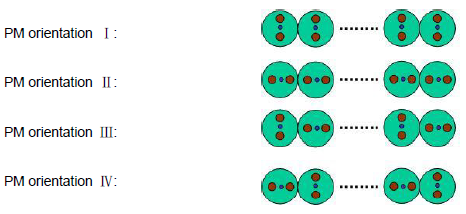

PM Fiber Alignment :



Specifications :

  Materials
Quartz, Pyrex
  Pitch Accuracy
< 0.5um
  Fiber Spacing
127 um or 250um
  Maximum Channels
64
  Polishing Angle
  0 or 8 Degrees



1-channel PM1550 fiber array in stock, polishing angle: 8 degrees, FC/PC connector, FPFA-1020102324 ($78.0):





Polishing surface quality: 40~20, V type polishing, 1.5 meter fiber length, PM orientation II,. Contact us for quantity pricing.



1-channel PM1550 fiber array in stock, polishing angle: 8 degrees, no connector, FPFA-1020102312 ($68.0):





Polishing surface quality: 40~20, V type polishing, 1.5 meter fiber length. Contact us for quantity pricing.



1-channel PM980-XP fiber array in stock, polishing angle: 0 degrees, FC/PC connector, FPFA-12901012232 ($110.0):





Polishing surface quality: 40~20, 1.0 meter fiber length. PM orientation II. Contact us for quantity pricing.



1-channel PM-S630-HP nufern fiber array in stock, polishing angle: 0 degrees, FC/PC connector, FPFA-12201012212 ($120.0):





Polishing surface quality: 40~20, 1.0 meter fiber length. PM orientation I. Contact us for quantity pricing.



1-channel PM-S630-HP nufern fiber array in stock, polishing angle: 0 degrees, FC/PC connector, FPFA-12201012232 ($120.0):





Polishing surface quality: 40~20, 1.0 meter fiber length. PM orientation II. Contact us for quantity pricing.



1-channel PM-S405-XP nufern fiber array in stock, polishing angle: 0 degrees, FC/PC connector, FPFA-12301012232 ($130.0):





Polishing surface quality: 40~20, 1.0 meter fiber length. PM orientation II. Contact us for quantity pricing.



2-channel PM-S630-HP nufern fiber array in stock, pitch: 250um, polishing angle: 0 degrees, FC/PC connector, FPFA-12202212212 ($170.0):





Polishing surface quality: 40~20, 1.0 meter fiber length. PM orientation I. Contact us for quantity pricing.



2-channel PM-S405-XP nufern fiber array in stock, pitch: 250um, polishing angle: 0 degrees, FC/PC connector, FPFA-12302212212 ($180.0):





Polishing surface quality: 40~20, 1.0 meter fiber length. PM orientation I. Contact us for quantity pricing.



2-channel PM-S405-XP nufern fiber array in stock, pitch: 127um, polishing angle: 0 degrees, FC/PC connector, FPFA-12302112212 ($180.0):





Polishing surface quality: 40~20, 1.0 meter fiber length. PM orientation I. Contact us for quantity pricing.



2-channel PM780 fiber array in stock, pitch: 250um, polishing angle: 0 degrees, FC/PC connector, FPFA-1190211232 ($170.0):





Polishing surface quality: 40~20, 1.0 meter fiber length. PM orientation II. Contact us for quantity pricing.



2-channel PM850 fiber array in stock, pitch: 127um, polishing angle: 0 degrees, FC/PC connector, FPFA-1190211232 ($170.0):





Polishing surface quality: 40~20, 1.0 meter fiber length. PM orientation II. Contact us for quantity pricing.



2-channel PM1550 fiber array in stock, pitch: 127um, polishing angle: 14.5 degrees, FC/PC connector, FPFA-10202142212 ($135.0):





Polishing surface quality: 40~20, 1.0 meter fiber length. PM orientation I. Polishing type: A. Contact us for quantity pricing.



2-channel PM1550 fiber array in stock, pitch: 127um, polishing angle: 0 degrees, FC/PC connector, FPFA-10202112232 ($130.0):





Polishing surface quality: 40~20, 1.0 meter fiber length. PM orientation II. Contact us for quantity pricing.



4-channel PM780 fiber array in stock, pitch: 250um, polishing angle: 0 degrees, FC/PC connector, FPFA-1190411232 ($310.0):





Polishing surface quality: 40~20, 1.0 meter fiber length. PM orientation II. Contact us for quantity pricing.



4-channel PM1550 fiber array in stock, polishing angle: 8 degrees, 127um spacing, FC/APC connector, FPFA-10204122332 ($192.0):





Polishing surface quality: 40~20, A type polishing, 1.0 meter fiber length. PM fiber alignment: orientation II. Contact us for quantity pricing.



8-channel PM1550 fiber array in stock, polishing angle: 8 degrees, 250um spacing, FC/PC connector, FPFA-10208221232 ($296.0):





Polishing surface quality: 40~20, A type polishing, 0.5 meter fiber length. PM fiber alignment: orientation II. Contact us for quantity pricing.



8-channel PM1550 fiber array in stock, polishing angle: 0 degrees, 127um spacing, FC/PC connector, FPFA-10208111212 ($296.0):





Polishing surface quality: 40~20, 0.5 meter fiber length. PM fiber alignment: orientation I. Contact us for quantity pricing.



8-channel PM1550 fiber array in stock, polishing angle: 0 degrees, 127um spacing, FC/APC connector, FPFA-10208111332 ($296.0):





Polishing surface quality: 40~20, 0.5 meter fiber length. PM fiber alignment: orientation II. Contact us for quantity pricing.



8-channel PM1550 fiber array in stock, polishing angle: 8 degrees, A-type, 127um spacing, FC/APC connector, FPFA-10208122312 ($345.0):





Polishing surface quality: 40~20, 1.0 meter fiber length. PM fiber alignment: orientation I. Contact us for quantity pricing.



8-channel PM1550 fiber array in stock, polishing angle: 8 degrees, A-type, 127um spacing, FC/APC connector, FPFA-10208122332 ($345.0):





Polishing surface quality: 40~20, 1.0 meter fiber length. PM fiber alignment: orientation II. Contact us for quantity pricing.



8-channel PM980 fiber array in stock, polishing angle: 0 degrees, 127um spacing, FC/APC connector, FPFA-10408112312 ($405.0):





Polishing surface quality: 40~20, 1.0 meter fiber length. PM fiber alignment: orientation I. Contact us for quantity pricing.

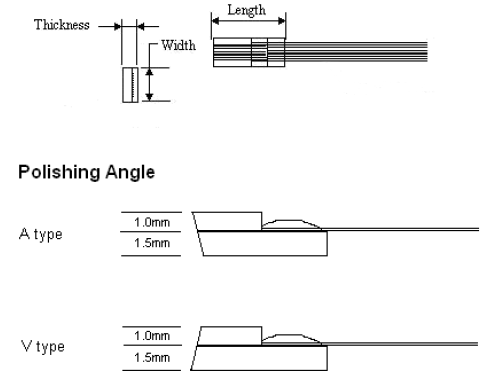

Standard Size Table:

  Dimensions P/N
Channels
Pitch (um) Length (L:mm) Width (W:mm) Height (T:mm) Height (t:mm)
  01
1
-
 8.0  2.5  2.5  1.5
  02
2
250
 10.0  2.5  2.5  1.5
  03
4
250
 10.0  2.5  2.5  1.5
  04
8
250
 10.0  3.5  2.5  1.5
  05
16
127
 12.0  3.5  2.5  1.5
  06
32
127
 12.0  5.7  2.5  1.5
  07
64
127
 12.0  9.7  2.5  1.5
