Low-Order Waveplates

Product Description:

Waveplates are made from birefringent materials such as quartz crystal and magnesium fluoride with the optic axis in the surface plane. When a linearly polarized beam enters a waveplate, the linearly polarized beam is resolved into components projected along the fast axis and the slow axis. The two components experience a relative phase retardation which is given by:



(1)

where d is the thickness of the waveplate; no and ne are the refractive indices of o-ray and e-ray; λ is the wavelength.

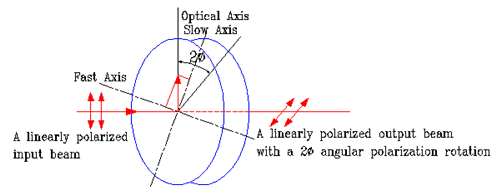

Figure 1: A λ /2 phase retardation quartz waveplate rotates the polarization of a linearly polarized beam by 2Φ

When phase retardation is a nonzero value, the waveplate transforms polarizations from one state to another. The thickness of a true zero order λ/2 phase retardation quartz waveplate in the visible spectrum is around 25 µm. Such a thin component is difficult to handle. One solution is to create "multiple order" waveplates with phase retardation equal to (m+1/2)•λ where m is an integer. The integer part of the retardation has no direct effect on the performance of a waveplate. However, because the integer part constitutes most of the overall retardation, it increases the sensitivity of the part's effective retardation to temperature or wavelength variation.

You may check this link (http://www.pmoptics.com/quartz_crystal.html) for quartz properties.

Specifications :

  Material
Crystal Quartz
  Wavelength Range
 240 ~ 2100 nm
  Dimensional Tolerance
± 0.05 mm
  Optical Axis Orientation Tolerance
 ± 0.1°
  Retardation Tolerance
 < λ/300
  Parallelism
  < 3 arc seconds
  Flatness
  λ/8 @ 632.8 nm
  Surface Quality
  20 ~ 10
  Wavefront Distortion
  λ/8 @ 632.8 nm
  AR Coating
  Specified by customer



Low-order half waveplates in stock, 85X20mm, wavelength: 780nm, AR coating on both sides, PLWP-078010231 ($196.0):





Optical axis aligned 45 degrees to edge. Contact us for quantity pricing.



Low-order quarter waveplates in stock, 21.5X16.5mm, wavelength: 780nm, AR coating on both sides, PLWP-078010621 ($98.0):





Optical axis aligned 45 degrees to edge. Contact us for quantity pricing.



Low-order half waveplates in stock, 37X23mm, wavelength: 780nm, AR coating on both sides, PLWP-078010131 ($136.0):





Optical axis aligned 45 degrees to edge. Contact us for quantity pricing.



Low-order quarter waveplates in stock, 8.5X8.5mm, wavelength: 780nm, No AR coating, PLWP-078011520 ($52.0):





Optical axis aligned 45 degrees to edge. Contact us for quantity pricing.



Low-order quarter waveplates in stock, 8.5X8.5mm, wavelength: 780nm, AR coating on both sides, PLWP-078011521 ($60.0):





Optical axis aligned 45 degrees to edge. Contact us for quantity pricing.



1-order half waveplates in stock, 20X20mm, wavelength: 780nm, AR coating on both sides, PLWP-078011831 ($95.0):





Optical axis aligned 45 degrees to edge. Contact us for quantity pricing.



Low-order quarter waveplates in stock, 12.5X12.5mm, wavelength: 780nm, AR coating on both sides, PLWP-078011921 ($70.0):





Optical axis aligned 45 degrees to edge. Contact us for quantity pricing.



Low-order quarter waveplates in stock, 18X8mm, wavelength: 780nm, AR coating on both sides, PLWP-078012021 ($65.0):





Optical axis aligned 45 degrees to edge. Contact us for quantity pricing.



Low-order quarter waveplates in stock, 8.5X3.5mm, wavelength: 780nm, AR coating on both sides, PLWP-078012121 ($45.0):





Optical axis aligned 45 degrees to edge. Contact us for quantity pricing.



Low-order quarter waveplates in stock, 8.5X32mm, wavelength: 780nm, AR coating on both sides, PLWP-078012221 ($80.0):





Optical axis aligned 45 degrees to edge. Contact us for quantity pricing.



Low-order quarter waveplates in stock, 12.5X37.0mm, wavelength: 852nm, AR coating on both sides, PLWP-085210921 ($130.0):





Optical axis aligned 45 degrees to edge. Contact us for quantity pricing.



Low-order quarter waveplates in stock, 12X15.5mm, wavelength: 852nm, AR coating on both sides, PLWP-085210821 ($76.0):





Optical axis aligned 45 degrees to edge. Contact us for quantity pricing.



Low-order quarter waveplates in stock, 3X3mm, wavelength: 852nm, AR coating on both sides, PLWP-085211021 ($25.0):





Optical axis aligned 45 degrees to edge. Contact us for quantity pricing.



Low-order quarter waveplates in stock, 5.5X3mm, wavelength: 852nm, AR coating on both sides, PLWP-085211421 ($32.0):





Optical axis aligned 45 degrees to edge. Contact us for quantity pricing.



Low-order half waveplates in stock, 3X3mm, wavelength: 852nm, AR coating on both sides, PLWP-085211031 ($25.0):





Optical axis aligned 45 degrees to edge. Contact us for quantity pricing.



1-order half waveplates in stock, 5X5mm, wavelength: 656nm, PLWP-065610430 ($50.0):





Optical axis aligned 22.5 degrees to edge. NO AR coating. Contact us for quantity pricing.



1-order half waveplates in stock, 5X5mm, wavelength: 656nm, AR coating on both sides. PLWP-065610431 ($60.0):





Optical axis aligned 22.5 degrees to edge. Contact us for quantity pricing.



1-order quarter waveplates in stock, 5X5mm, wavelength: 656nm, PLWP-065610420 ($50.0):





Optical axis aligned 45 degrees to edge. NO AR coating. Contact us for quantity pricing.



1-order quarter waveplates in stock, 5X5mm, wavelength: 656nm, AR coating on both sides. PLWP-065610421 ($60.0):





Optical axis aligned 45 degrees to edge. Contact us for quantity pricing.



low-order quarter waveplates in stock, 5X5mm, wavelength: 532nm, AR coating on both sides. PLWP-053210421 ($60.0):





Optical axis aligned 45 degrees to edge. Contact us for quantity pricing.



low-order half waveplates in stock, 5X5mm, wavelength: 532nm, AR coating on both sides. PLWP-053210431 ($60.0):





Optical axis aligned 45 degrees to edge. Contact us for quantity pricing.



1-order lambda/8 waveplates in stock, 5X5mm, wavelength: 1064nm, AR coating on both sides, PLWP-1064-10411 ($25.0):





Optical axis aligned 45 degrees to edge. Contact us for quantity pricing.



Low-order half waveplates in stock, 4 mm octagon, wavelength: 780nm, AR coating on both sides, PLWP-078010031 ($36.0):





Contact us for quantity pricing.



Low-order half waveplates in stock, 8 mm octagon, wavelength: 852nm, AR coating on both sides, PLWP-085211131 ($66.0):





Contact us for quantity pricing.



Low-order quarter waveplates in stock, Φ25.4 mm, wavelength: 852nm, AR coating on both sides. PLWP-085211321 ($88.0):





Contact us for quantity pricing.



Low-order quarter waveplates in stock, Φ20.0 mm, wavelength: 852nm, AR coating on both sides. PLWP-085210321 ($88.0):





Contact us for quantity pricing.



Low-order half waveplates in stock, Φ25.4 mm, wavelength: 852nm, AR coating on both sides. PLWP-085211331 ($88.0):





Contact us for quantity pricing.



Low-order half waveplates in stock, Φ20.0 mm, wavelength: 852nm, AR coating on both sides. PLWP-085210331 ($88.0):





Contact us for quantity pricing.



Low-order half waveplates in stock, Φ12.7 mm, wavelength: 780nm, AR coating on both sides. PLWP-078011231 ($50.0):





Optical axis is normal to the cut . Contact us for quantity pricing.



Low-order quarter waveplates in stock, Φ25.4 mm, wavelength: 780nm, AR coating on both sides. PLWP-078011321 ($95.0):





Optical axis is normal to the cut . Contact us for quantity pricing.



Low-order half waveplates in stock, Φ25.4 mm, wavelength: 780nm, AR coating on both sides. PLWP-078011331 ($95.0):





Optical axis is normal to the cut . Contact us for quantity pricing.



Low-order quarter waveplates in stock, Φ12.7 mm, wavelength: 850nm, AR coating on both sides. PLWP-085011221 ($50.0):





Optical axis is normal to the cut . Contact us for quantity pricing.



Low-order half waveplates in stock, Φ12.7 mm, wavelength: 850nm, AR coating on both sides. PLWP-085011231($50.0):





Optical axis is normal to the cut . Contact us for quantity pricing.



Low-order quarter waveplates in stock, Φ20 mm, wavelength: 780nm, AR coating on both sides, PLWP-078010321 ($88.0):





Optical axis is normal to the cut . Contact us for quantity pricing.



Low-order half waveplates in stock, Φ20 mm, wavelength: 780nm, AR coating on both sides, PLWP-078010331 ($80.0):





No cut to indicate the optical axis. Contact us for quantity pricing.



Low-order quarter waveplates in stock, Φ25.4 mm, wavelength: 460.9nm, AR coating on both sides, PLWP-460911321 ($130.0):





Fast axis is normal to the cut . Contact us for quantity pricing.



Low-order quarter waveplates in stock, Φ12.7 mm, wavelength: 398.9nm, AR coating on both sides, PLWP-398911221 ($108.0):





Fast axis is normal to the cut . Contact us for quantity pricing.



Low-order half waveplates in stock, Φ25.4 mm, wavelength: 398.9nm, AR coating on both sides, PLWP-398911331 ($136.0):





Fast axis is normal to the cut . Contact us for quantity pricing.



Low-order quarter waveplates in stock, Φ35.0 mm, wavelength: 398.9nm, AR coating on both sides, PLWP-398912521 ($205.0):





Fast axis is normal to the cut . Contact us for quantity pricing.



Low-order quarter waveplates in stock, 28X8 mm, wavelength: 398.9nm, AR coating on both sides, PLWP-398912321 ($125.0):





Fast axis is 45 degrees to the edge . Contact us for quantity pricing.



Low-order quarter waveplates in stock, 28.5X11mm, wavelength: 398.9nm, AR coating on both sides, PLWP-398912421 ($138.0):





Fast axis is 45 degrees to the edge . Contact us for quantity pricing.



 Ordering Information:

    P    L
  W
  P


  X





A



B



C



D



E




A

 Wavelength

 1550 = 1550nm

 0980 = 980nm

 XXXX = Your Application Wavelength



B

Material

 1 = Crystal Quarzt

   0 = Special



C

Dimensions

 01 = 10mm
  Check Standard Size Table Below

   00 = Custom Dimensions



D

Phase Retardation

1 = λ/8

  2 = λ/4

  3 = λ/2

  4 = λ

   0 = Special



E

AR caoting

1 = yes

   0 = NO




Standard Size Table:

  Dimensions P/N
(mm)
  01
37X23
   02
 85X20
   03
 Φ20
