IR narrow bandpass filters

Specifications  for PIRF-INBP5300 Type :

  Material Silicon
  Thickness Tolerance  ± 0.05mm
  Length, Width or Diameter Tolerance  ± 0.15mm
  Central Wavelength (CWL)
5300 ± 53nm
  Half Power Bandwidth (HPB)
610 ± 40nm
  Tpeak (Tp)
80%
  Out of Band Blocking
400 ~  11000nm
  Tavg
< 1%
  Surface Quality
80/50

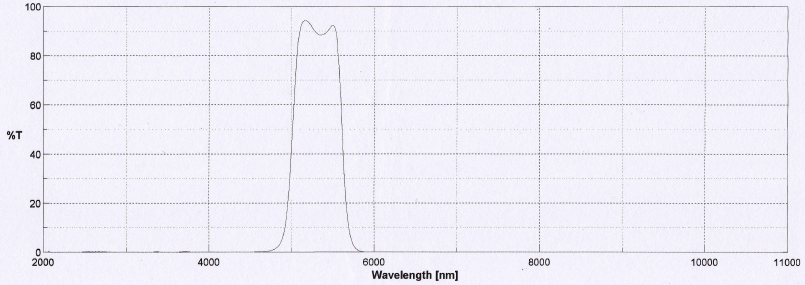

  Transmission Curve
See Figure Below



Narrow Bandpass Filter, CWL:5300nm, diameter: 20.0mm, thickness: 1.0mm in stock, PIRF-INBP5300-01101 ($288.0):





Contact us for quantity pricing.



See other IR filters
