IR narrow bandpass filters

Specifications  for PIRF-INBP2470:

  Material Silicon
  Thickness Tolerance  ± 0.05mm
  Length, Width or Diameter Tolerance  ± 0.15mm
  Central Wavelength (CWL)
2470 ± 25nm
  Half Power Bandwidth (HPB)
74 ± 20nm
  Tpeak (Tp)
70%
  Out of Band Blocking
1500 ~  5500nm
  Tavg
< 1%
  Surface Quality
80/50

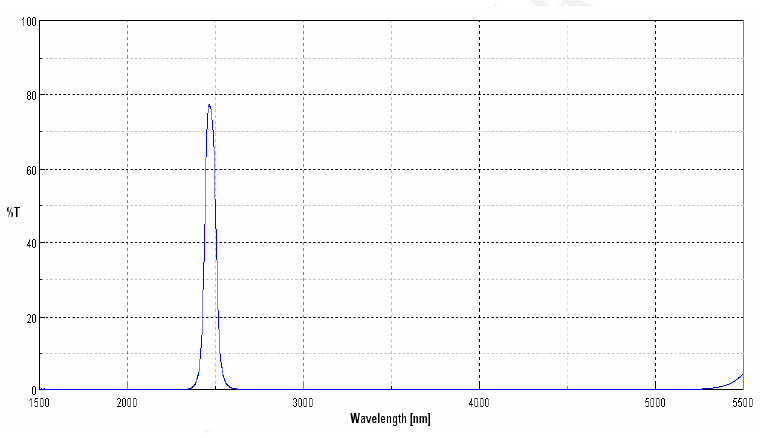

  Transmission Curve
See Figure Below



Narrow Bandpass Filter, CWL:2470nm, diameter: 25.0mm, thickness: 0.5mm in stock, PIRF-INBP2470-02101 ($268.0):





Contact us for quantity pricing.
