IR long pass filters

Specifications  for PIRF-ILP2400 Type :

  Material Silicon
  Thickness Tolerance  ± 0.05mm
  Length, Width or Diameter Tolerance  ± 0.15mm
  50% Cut on
2400 ± 100nm
  Transmission Wavelength Range(TWR)
2500 ~ 3600nm
  Tavg
90%
  Out of Band Blocking
400 ~  2200nm
  Surface Quality
80/50

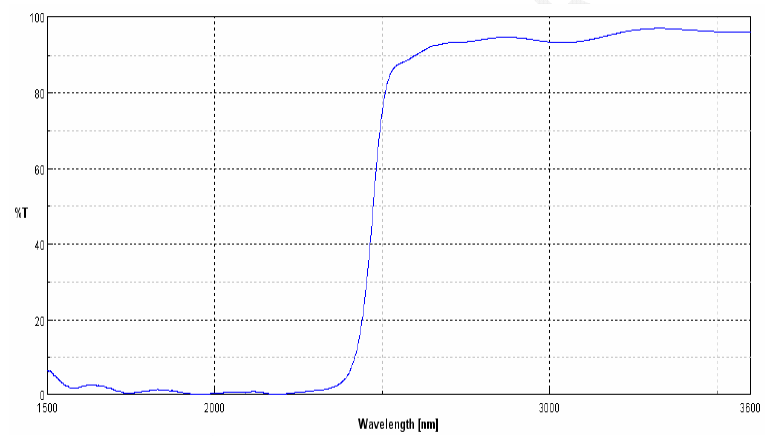

  Transmission Curve
See Figure Below



Long pass Filter, 50% cut on 2400nm, diameter: 7.48mm, thickness: 1.0mm in stock, PIRF-ILP5500-01101 ($128.0):





Contact us for quantity pricing.



Long pass Filter, 50% cut on 2400nm, diameter: 25.3mm, thickness: 0.5mm in stock, PIRF-ILP5500-01102 ($332.0):





Contact us for quantity pricing.



See other IR filters
