IR long pass filters

Specifications  for PIRF-ILP2000 Type :

  Material Silicon/Sapphire
  Thickness Tolerance  ± 0.05mm
  Length, Width or Diameter Tolerance  ± 0.15mm
  5% Cut on
1930 ± 30nm
  50% Cut on
2000 ± 40nm
  Transmission Wavelength Range(TWR)
2100 ~ 2800nm
  Tavg
85%
  Out of Band Blocking
400 ~  1800nm
  Surface Quality
80/50

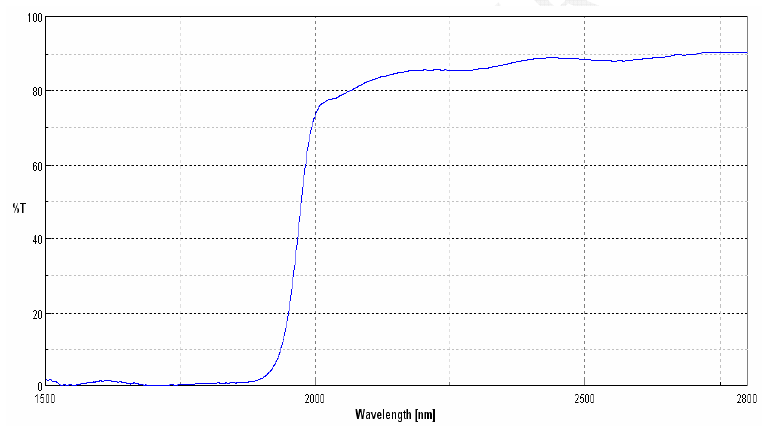

  Transmission Curve
See Figure Below



Long pass Filter, 5% cut on 1930nm, 50% cut on 2000nm, silicon substrate, size: 9.15X9.15mm, thickness: 0.5mm in stock, PIRF-ILP2000-01101 ($128.0):





Contact us for quantity pricing.



Long pass Filter, 5% cut on 1930nm, 50% cut on 2000nm, sapphire substrate, diameter: 26.0mm, thickness: 2.0mm in stock, PIRF-ILP5500-01301 ($368.0):





Contact us for quantity pricing.



See other IR filters
