InGaAs PIN Photodiodes (DPIN-723)

InGaAs PIN Photodiodes, TO-46, Flat Window, Active Area 1500um in Stock, DPIN-723 ($52.0):





The photodiode has superior noise and photoelectric performance. Contact us for quantity pricing.



Electrical and Optical Characteristics (T=25ºC):

Parameters
Symbol
Test conditions
Min
Typ Max
Unit
Spectral Response Range
λ
  1000
  1650
nm
Dark Current
ID
VR = 5V
  2.0
5.0
nA
Responsivity
Re
VR = 5V, λ = 1310nm
0.85
0.90
  A/W
VR = 5V, λ = 1550nm 0.90
0.95
  A/W
Active Area
    Φ1500
um
Operating Voltage
Vopr
    -1
-3
V



Absolute Maximum Ratings (T=25ºC):

  Parameters
Min
Typ Max
Unit
  Reverse Voltage
    10
V
  Input Optical Power
    10
dBm
  Operating Temperature
-40
  85
°C
  Storage Temperature
-40
  85
°C
  Lead Solder Temperature
    260
°C
  Soldering Duration
    10
s

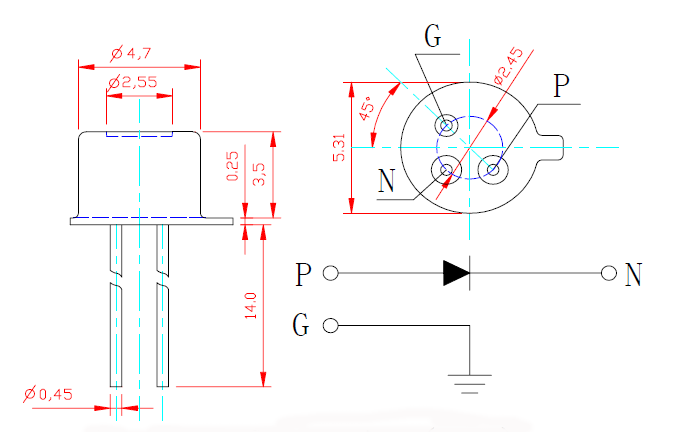

Package Dimensions:



Spectral Response, Responsivity vs. Temperature :
