Golden Yellow Glass (Cut-off Type)

Product Description:

The transmission wavelength limit (λtj) is defined as a wavelength which corresponds to 50% of the maximum transmissivity on the spectral transmission curve with a glass thickness of 2mm.

The slope of absorption curve is represented as the differece betweeen optical density D(λtj-20) and D(λtj) with a glass thickness of 2mm.

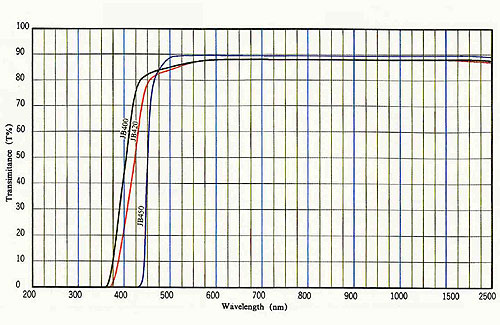

Figure 1: A typical Cut-off Type Golden Yellow Glass Transmittance Curve

Glass Characteristic :

Type Thickness (mm) nd αX10-7 (/°C) Tg(°C) Ts(°C) λtj (nm) (Tλtj=50%) λ0 (nm) 0 (%) K
JB400 2 1.632 95 497 555 400±10 560 ≥86.0 ≥0.6
JB420 2 1.632 95 497 555 420±10 560 ≥86.0 ≥0.6
JB450 2 1.523 103 527 605 450±10 560 ≥89.5 ≥0.6
JB470 2 1.523 103 527 605 470±10 560 ≥89.5 ≥0.8
JB490 2 1.523 103 527 605 490±10 580 ≥89.5 1.2
JB510 2 1.523 103 527 605 510±10 600 ≥89.5 1.2



Golden Yellow Glass JB 490 in stock, M52X0.75mm mount, clear aperature: 47mm, thickness; 2mm, PCGF-JB490-0111 ($28.0):  ,





Outer diameter: 54mm, surface quality: 80/50, thickness with mount: 7.0mm. Contact us for quantity pricing.



Golden Yellow Glass JB 420 in stock, no mount, diameter: 12.7mm, thickness; 2mm, PCGF-JB420-0112 ($9.0):  ,





Surface quality: 60/40. Contact us for quantity pricing.



Golden Yellow Glass JB 400 in stock, no mount, diameter: 25.0mm, thickness; 2mm, PCGF-JB400-0212 ($12.0):  ,





Surface quality: 60/40. Contact us for quantity pricing.
