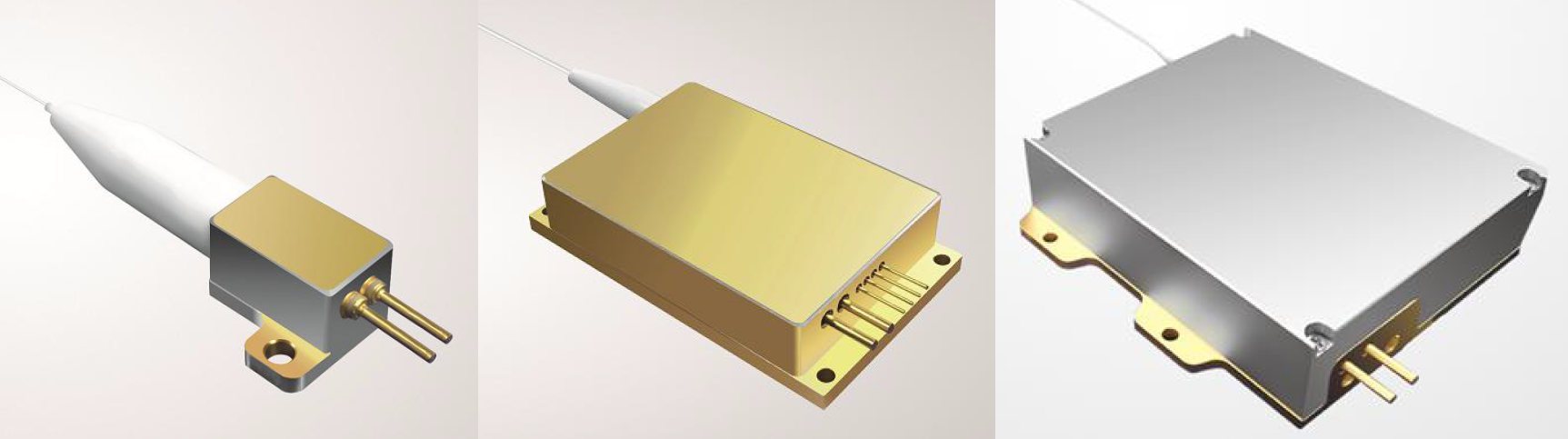

976nm Fiber Coupled Laser Diodes

Product Features:

  • 10W, 20W, 30W, 70W, 150W or 200W for MM fiber output power
  • 105μm, 106.5μm, 200μm core diameter for MM fiber
  • 0.22 N.A. for MM fiber
  • For pumping or medical use

Electrical and Optical Characteristics for MM, 10W, 70W and 200W type, others available on request (T=25ºC):

Parameters
Symbol
Test conditions
Min
Typ Max
Unit
CW Output Power for 10W
Po
CW 10   W
CW Output Power for 70W
Po
CW 70   W
CW Output Power for 200W
Po
CW 200   W
Threshold Current
Ith
CW   0.9   A
Operating current for 10W, 70W
Iop
CW 10W, 70W
12 13
A
Operating current for 200W
Iop
CW 200W
13 14
A
Operating Voltage for 10W
Vop
CW 10W
1.6 2
V
Operating Voltage for 70W
Vop
CW 70W
11 12.5
V
Operating Voltage for 200W
Vop
CW 200W
31.5 35
V
Slope Efficiency for 10W
η
CW 10W
0.9 W/A
Slope Efficiency for 70W
η
CW 70W
6.5   W/A
Slope Efficiency for 200W
η
CW 200W
17.5   W/A
Electrical-to-Optical Efficiency
PE
CW 10, 70 or 200W
48   %
Central Wavelength
ʎc
CW 10, 70 or 200W
973 976 979
nm
Spectral width(FWHM)
Δʎ
CW 10, 70 or 200W
6   nm
Back Reflection Wavelength
  CW 10, 70 or 200W 1040 1200 nm
Back Reflection Isolation
  CW 10, 70 or 200W 30   dB
Wavelength Shift with Temperature
  CW 10, 70 or 200W
0.3   nm/℃
Fiber Core Diameter
Dcore
  105 106.5 200 μm
Fiber Numeric Aperture
NA
0.22
ESD
ESD
  500
V
Storage temperature
    -20 70

Lead Soldering Temp
    260

Lead Soldering Time
    10
Sec
Operating Case Temperature
    15 35

Relative Humidity
    15 75
%



976nm 105um multi mode fiber coupled laser diodes in stock, 10W output power, bare fiber, no connector. K976D02RN-10W ($268.0):





Contact us for quantity pricing.

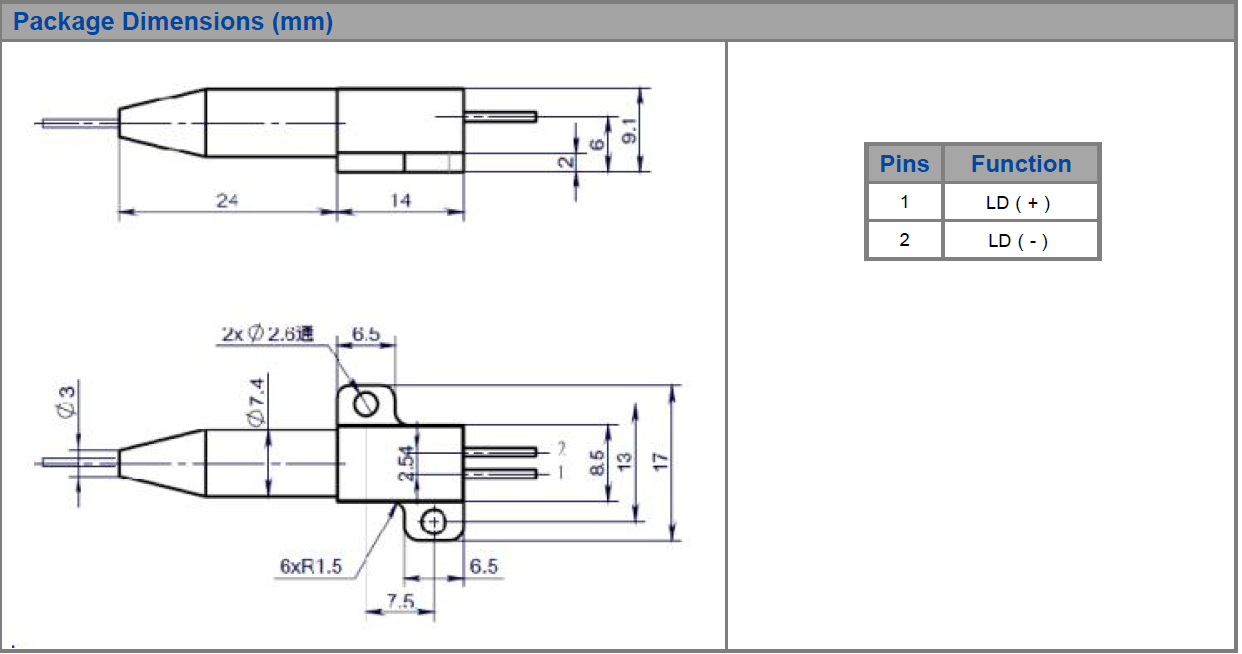

Pin Definition and Dimensions in mm for 10W type:

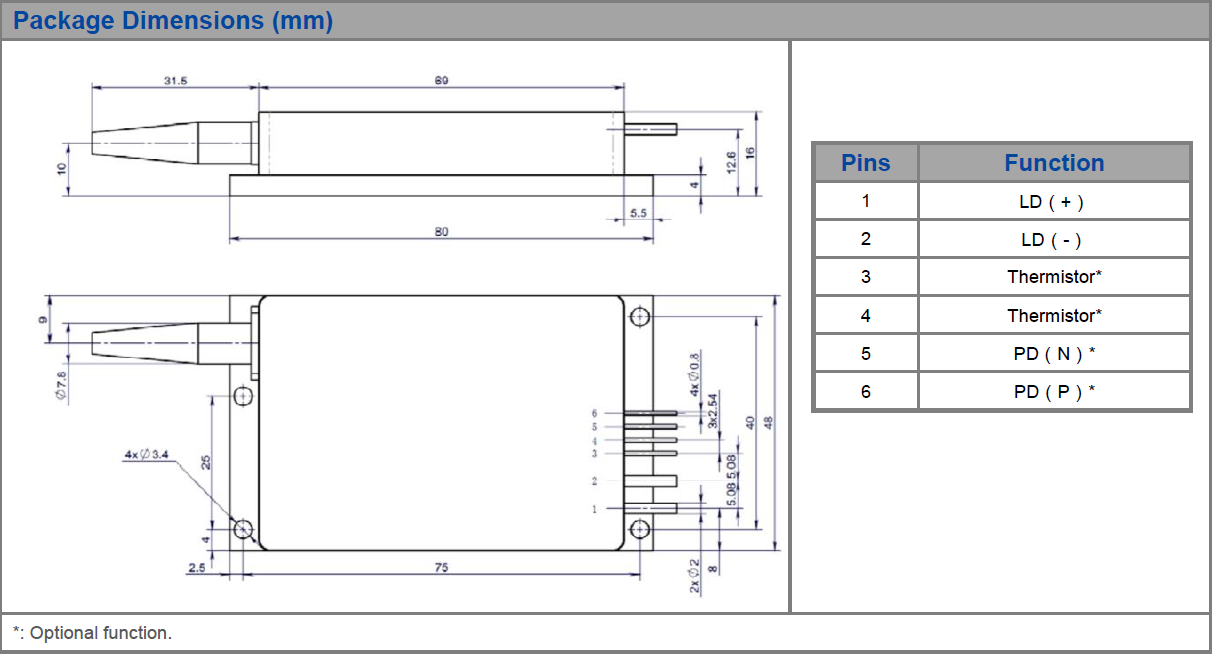

Pin Definition and Dimensions in mm for 70W type:

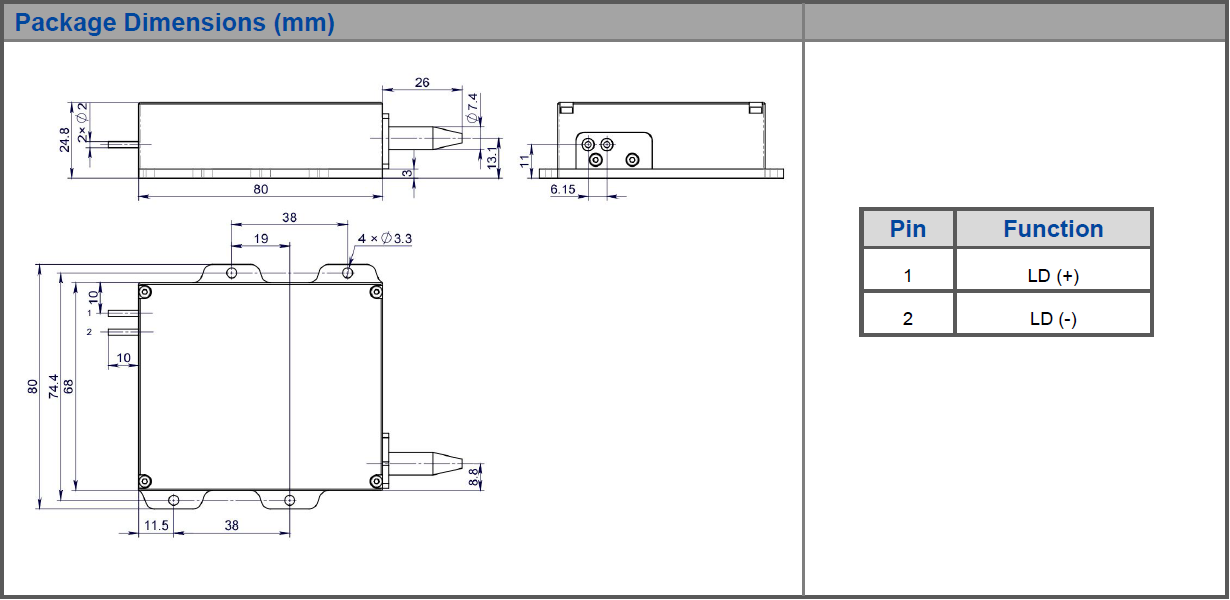

Pin Definition and Dimensions in mm for 200W type:
