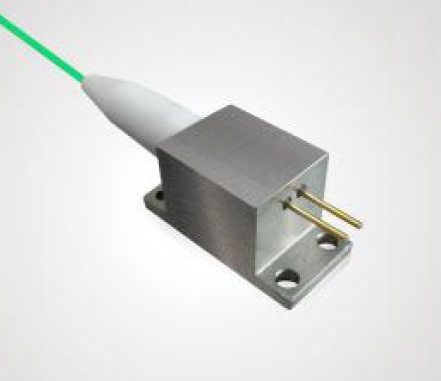

830nm Fiber Coupled Laser Diodes

Product Features:

  • 1W output power, high power is available on request
  • 50μm fiber core diameter
  • 0.14 N.A.
  • For flexo printing

Electrical and Optical Characteristics (T=25ºC):

Parameters
Symbol
Test conditions
Min
Typ Max
Unit
CW Output Power
Po
CW 1   W
Threshold Current
Ith
CW   0.25   mA
Operating current
Iop
CW 1W
  1.5
mA
Operating Voltage
Vop
CW 1W
  2.0
V
Reverse Voltage
Vre
CW 1W
2.5   V
Slope Efficiency
η
CW 1W
0.9   W/A
Electrical-to-Optical Efficiency
PE
CW 1W
40   %
Central Wavelength
ʎc
CW 1W
820 830 840
nm
Spectral width(FWHM)
Δʎ
CW 1W
6   nm
Wavelength Shift with Temperature
  CW 1W
0.3   nm/℃
Fiber Core Diameter
Dcore
  50   μm
Fiber Numeric Aperture
NA
0.14
ESD
ESD
  500
V
Storage temperature
    -20 70

Lead Soldering Temp
    260

Lead Soldering Time
    10
Sec
Operating Case Temperature
    15 35

Relative Humidity
    15 75
%

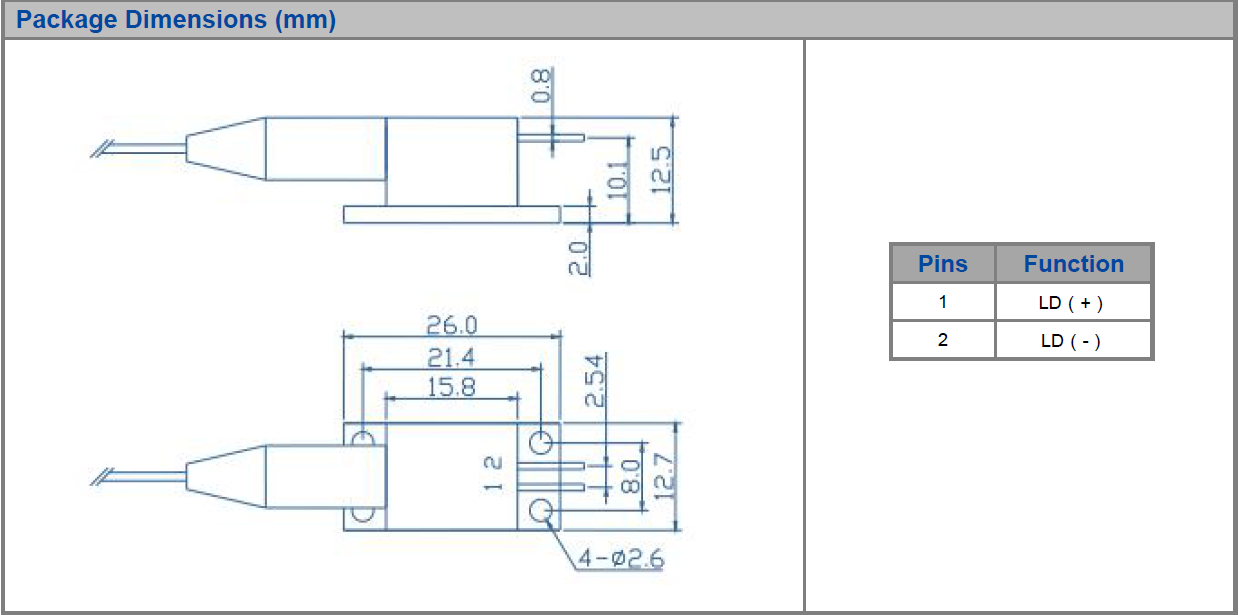

Pin Definition and Dimensions in mm :
